Portaflow
PF330/PF220
-
DSP measurement technique
-
Reynolds number correction
-
Easy to install
-
Simple to follow programming menu
-

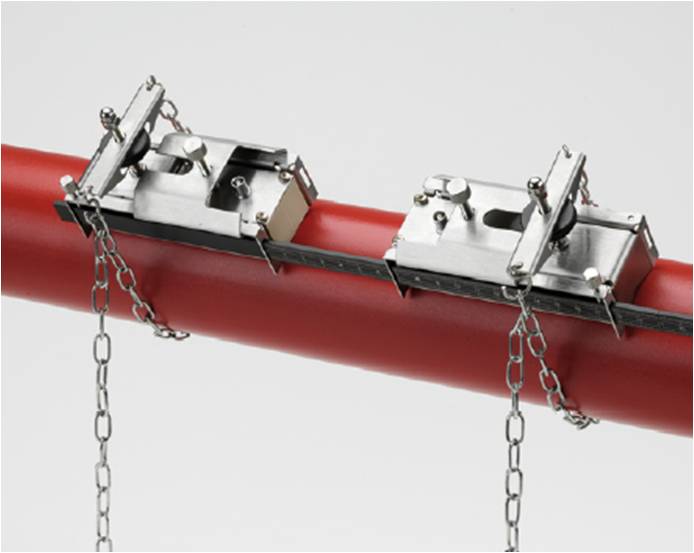

Clamp-on sensors

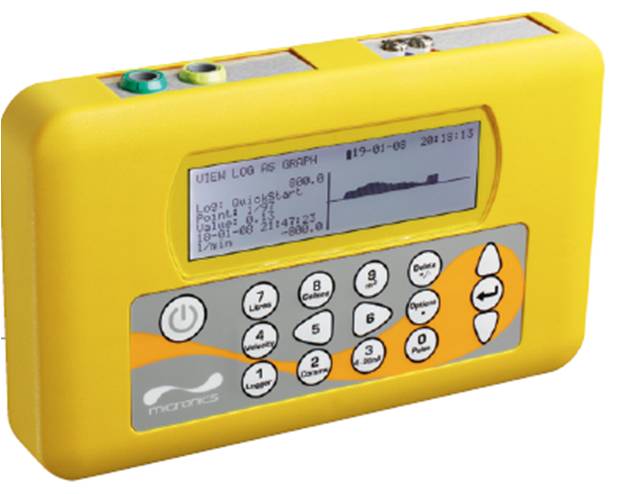

PF330 Specification

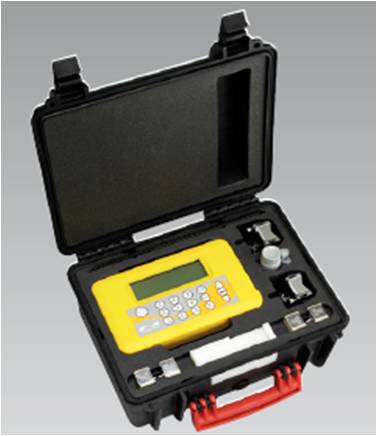

Carry Case: – The PF330 is supplied in a hard wearing IP67 carry case.
‘A’ Transducers: – 13mm OD to 115mm OD pipes.
‘B’ Transducers: – 50mm OD to 2000mm OD pipes.
Optional Transducers: – ‘D’ for pipes > 1500mm up to 5000mm.
Transducer Operating Temp: – ‘A’&‘B’ -20°C to +135°C. ‘D’ -20°C to +80°C. ‘A’&‘B’ Optional Hi-Temp -20°C to +200°C.
Outputs: – Opto Isolated 0/4 –20mA; RS 232/USB;
5v pulse @ 1 pulse/sec max.
Data Logging: – 98,000 data points. Up to 20 named recording blocks. Data displayed locally in text or graph format. Real time or stored. Can be downloaded via RS232
or USB port to Windows based PC.
Bluetooth Printer: – Optional.
|

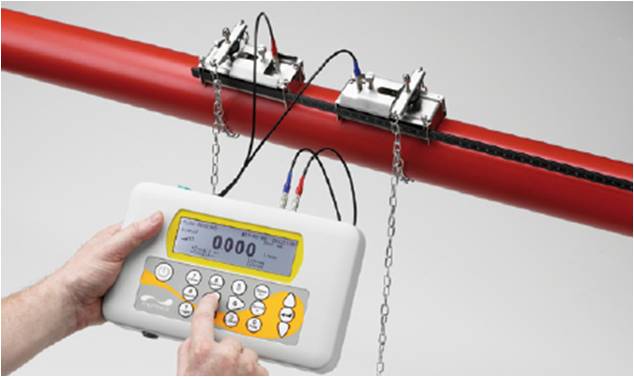

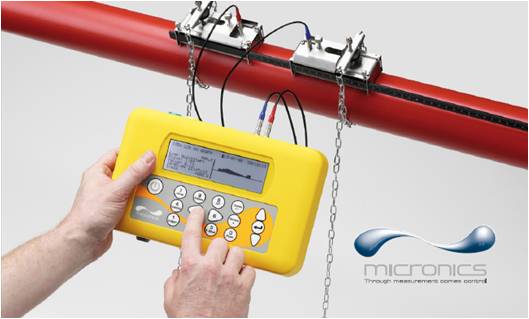

The new portable range of clamp-on flow meters from Micronics, for simple, accurate flow measurement
from outside the pipe!
The Portaflow range brings simplicity to the non-invasive measurement of liquid flow. Portaflow offers the user quick and accurate flow measurement with its easy to follow menu and simple set up. Results can be achieved within minutes of opening the case!
Compact, rugged and reliable, the Portaflow range has been designed to provide sustained performance in industrial environments.

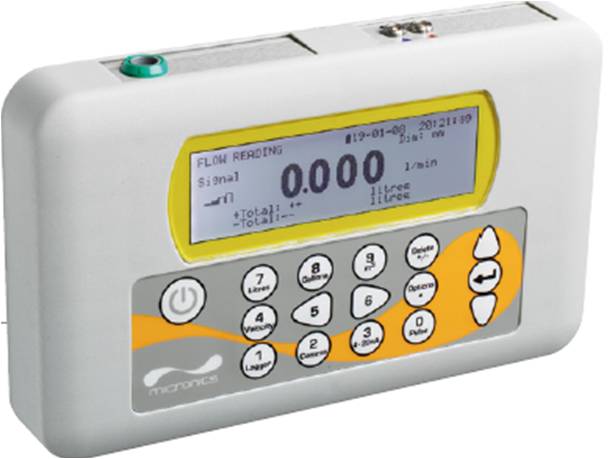

PF220 Specification
Carry Case: – Polypropylene case, with foam insert and double wall for extra strength.
PF220A with ‘A’ Transducers: – 13mm OD to 115mm OD pipes.
OR
PF220B with ‘B’ Transducers: – 50mm OD to 1000mm OD pipes.
Transducer Operating Temp: – ‘A’& ‘B’ -20°C to +135°C.
Outputs: – Opto Isolated 0/4 –20mA; 5v pulse @ 1 pulse/sec max.
PF330 and PF220 Product Features
- Flow Range – 0.1m/sec to 20m/sec bi-directional
- Display – 64 x 240 pixels graphic display
- Programming via 16 key control panel
- Battery or mains operation
- Rechargeable battery
- Battery Life – 20 hours from fully charged, depending on load
- Power – 110 – 240VAC +/-10% supply via PSU
- 9 user selectable languages including English, German, French, Spanish and Russian!
- Accuracy Pipe ID > 75mm – ±0.5% to ±2% of flow reading for flow rate >0.2m/s
- Accuracy Pipe ID 13-75mm – ±3% of flow reading for flow rate >0.2m/s
- CE approved
|
